The Avi-on IFAC
Internal Fixture Adapter

Avi-on Internal Fixture Adapter

IFAC FEATURES

IFA

Description

The IFAC series fixture adapter mounts inside lighting fixtures proving addressability for each luminaire. All fixture adapters are part of the Avi-on® Bluetooth® with Mesh product ecosystem supported by the Avi-on mobile app, commissioning tools and cloud IoT Services.

Operation

The IFAC supports 110V-277VAC. Plug any 1-10V dimmable fixture into the the IFAC. The IFAC includes a 5A relay to switch the power off to the fixture. Includes dual 0-10V outputs for color changing and built in 15 minute energy monitoring (0.5% accurate).

Direct Connect Ready

Just plug any Avi-on Direct Connect Sensor into the sensor port for easy sensor integration. Sensor is powered directly from the IFAC.

Applications

The IFAC is Avi-on’s most versatile individual fixture controller.  It works with any 1-10V dimming driver.

The IFAC is an easy solution for almost any indoor commercial lighting project including offices, manufacturing, warehouses, schools, gymnasiums, common areas, UV-C lighting control, and outdoor area lights, floods, canopies in garage, open parking, site, and athletic facilities.

Just plug an Avi-on Direct Connect PIR or Microwave motion and daylight sensor into the IFAC for easy lighting control solutions, whether zone based or Luminaire Level Lighting Controls (LLLC).

Use the IFAC whenever individual fixture energy consumption monitoring is needed to qualify for energy rebates or support corporate energy management initiatives.

Finally, the 2-channel 0-10V model is ideal for projects with tunable white requirements.

IFAC
PARTS & ORDERING

Select a part number from the table listed below
Part NumberSupply VoltageChannelsRelay
AVI-IFAC-5ABasic IFAC with 0-10v dimming, 120 - 277 VACSingle5 Amp
AVI-IFAC-5A-CCT120 - 277 VAC w/CCT activationDual5 Amp
AVI-IFAC-5A-WC120 - 277 VAC w/CCT activation (2 standard drivers)Dual5 Amp
AVI-IFAC-5A-OA120 - 277 VAC w/ outdoor antennaSingle5 Amp
AVI-B-XFAC-16A-1CH-CL1-IFXFAC for applications where an IFAC does not fit.Single16 Amp

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

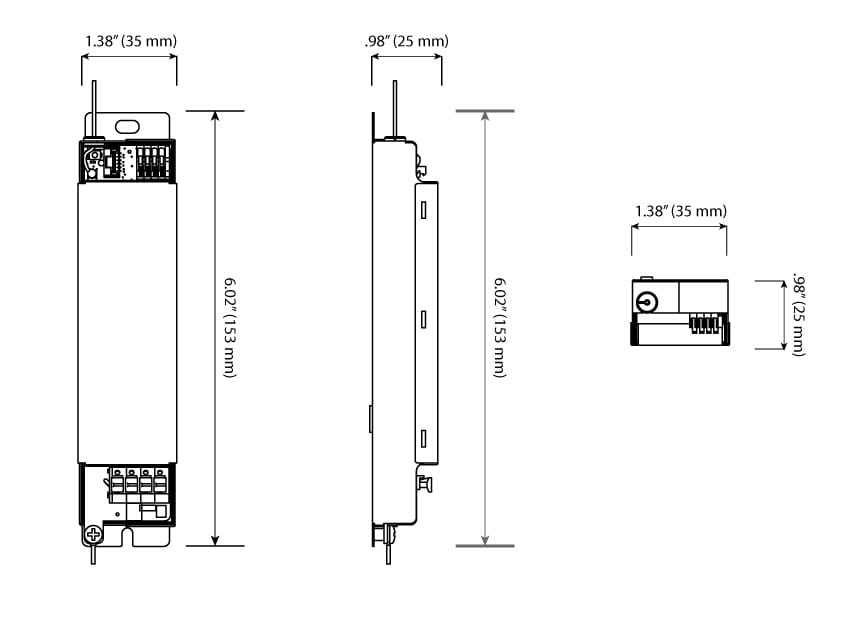

Specifications

  • Supply Voltage US 110-277 VAC
  • Supply Voltage EU 220-240 VAC
  • Operating Current Consumption (110/277 VAC) 19/13-124/72 mA
  • Operating Current Consumption (230VAC) 13-72 mA
  • Output Voltage 0-10V_OUT 0.0-10.0 V
  • Output Current 0-10V OUT 0.0-25.0 mA
  • Storage Temperature -40 – +85 °C
  • Amblent Operating Temperature -30 – +80 °C
  • Relay Current [General Use (GP) / Tungsten / Electric/Magnetic Ballast /LED Driver}  5.0 A

High Voltage Connections

  • Driver Line GREEN / ORANGE AC 110-277VAC US; 230VAC EU
  • DRIVER NEUTRAL GREEN / ORANGE AC Neutral/Common
  • AC NEUTRAL GREEN / ORANGE AC Neutral/Common
  • AC LINE IN GREEN / ORANGE Relay Switched AC (output)
  • GROUND YELLOW w/GREEN STRIPE Earth Ground

Low Voltage Connections

  • CH1+ (DIM) GRAY Dimming 0-10VDC.
  • CH1- (DIM) GRAY Dimming Negative
  • CH2+ (CCT) GRAY CCT 0-10VDC
  • CH2- (CCT) GRAY CCT Negative

Certifications

  • USA
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247″
  • EU
    BS EN IEC 55015:2019+A11:2020 / EN IEC 55015:2019+A11:2020
    BS EN 61547:2009 / EN 61547:2009
    BS EN IEC 61000-3-2:2019+A1:2021 / EN IEC 61000-3-2:2019+A1:2021
    BS EN 61000-3-3:2013+A2:2021 / EN 61000-3-3:2013+A2:2021
    ETSI EN 301 489-1 V2.2.3 (2019-11)
    ETSI EN 301 489-17 V3.2.4 (2020-09)
    BS EN IEC 61058-1:2018 / EN IEC 61058-1:2018
    BS EN 61058-1-2:2016 / EN 61058-1-2:2016
    BS EN 62479:2010 / EN 62479:2010
    BS EN 50663:2017 / EN 50663:2017
    ETSI EN 300 328 V2.2.2 (2019-11)
  • Canada
    IC ID: 20544-AVIBG21
    ICES-005, Issue 5, Dec. 2018
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB
    DID: D059595
    Qualified Design ID (QDID): 185220
  • UL
    UL 60730-1 ED.5
    UL 2043 ED.4
    ALSO LISTED AS EMERGENCY LIGHTING EQUIPMENT (UL 924)
