Avi-on 2-Button Switch

For some applications needing only on/off capability, or where there is a need to match conventional two button paddle décor designs, the Avi-on 2 button wall station is the perfect answer.  Available with either on/off or on/off with raise/lower dimming options configurable from the Avi-on app. AC, LV and battery-powered options make it easy to install in nearly any application.  The two-button cover can even be retrofitted to existing switches with an easy firmware update.

Wall Station

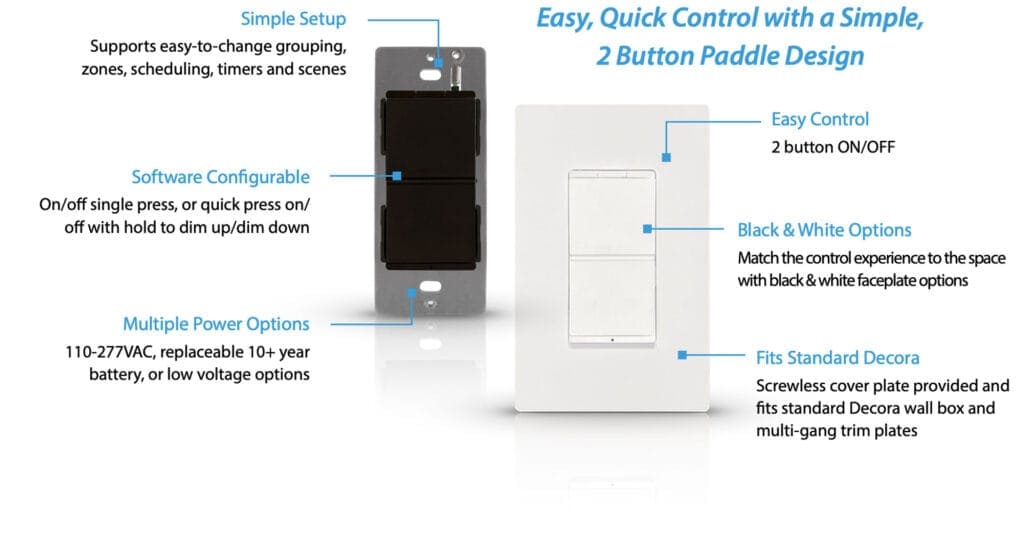

FEATURES

2 Button Wall Station

Features

  • AC 110-277V version/
    Battery powered with 10+ year battery life/
    Low Voltage 10-35VDC or 10-25VAC
  • On/Off buttons
  • Software configurable on/off single press, or quick press on/off with hold to dim up/dim down
  • Fits standard Decora wall box and multi gang trim plates
  • Screwless cover plate also provided

Specifications

  • Indoor use only (spray resistant cover plate available for food service applications)
  • Operating Temp: -4 to 122 °F (-20 to 50 °C)
  • UL Listed

Materials

  • Non-ferrous materials (plastic and aluminum).
  • All materials are RoHS compliant.










AC 2 Button Wall Station  2 Button Wall Station – AC (PDF)

Battery 2 Button Wall Station  2 Button Wall Station – Battery (PDF)

Battery 2 Button Wall Station  2 Button Wall Station – Low Voltage (PDF)

Wall Station Dimensions

Same dimensions for all products

Avi-on Direct Connect Sensors  AC Wall Stations

Avi-on Direct Connect Sensors  LV Wall Stations



Avi-on Direct Connect Sensors  Quick Set-up Guide (PDF)

Commercial Installation Guide  Commercial Installation Guide (PDF)

Available in Black or White

2 Button Wall Station

Wall Station
PARTS & ORDERING

Select a part number from the table listed below
Part NumberNameDescription
AVI-B-2401AC-32-Button Wall Station - ACAC-powered 2-button switch. Configurable for on/off or dimming via software. 110-277VAC.
AVI-B-2402BAT-32-Button Wall Station - BatteryBattery-powered 2-button switch. Configurable for on/off or dimming via software. No wiring required.
AVI-B-2403LV-32-Button Wall Station - Low VoltageLow-voltage 2-button switch. Configurable for on/off or dimming via software. 12–24VDC and 12-24VAC.
AVI-B-2403AC-62-Button Wall Station - AC with Black ButtonsAC-powered 2-button switch with black buttons. 110-277VAC.
AVI-B-2403BAT-62-Button Wall Station - Battery with Black ButtonsBattery-powered 2-button switch with black buttons. No wiring required.
AVI-B-2403LV-62-Button Wall Station - Low Voltage with Black ButtonsLow-voltage 2-button switch with black buttons. 12–24VDC and 12-24VAC.

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.

Specifications

2 Button Wall Station - AC

Electrical

  • Input Voltage: 110–277VAC
  • Input Frequency: 47–63Hz
  • Amperage: 5.0A
  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature: -40–185 ºF
    (-40–85 °C)

Power Wires

  • Gauge: 16
  • Black: AC Line In
  • Red: AC Line Out
  • White: AC Neutral
  • Green: AC Ground

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls

2 Button Wall Station - Battery

Battery

  • Estimated Battery Life: 10 year
  • Battery Type: CR123A*2 (Lithium)
  • DC 3V 5mA

Specifications

  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature -40–185 ºF
    (-40–85 °C)

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls

2 Button Wall Station - Low Voltage

Electrical

  • Input Voltage: 10–35VDC
  • Input Voltage: 10–25VAC
  • Input Frequency (VAC): 47–63Hz
  • Amperage: – 20 mA
  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature: -40–185 ºF
    (-40–85 °C)

Power Wires

  • Gauge: 16
  • Red: AC/DC (+)
  • Black: AC/DC (-)

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls
