Dual-tech
Sensor
SENSOR FEATURES
Product Overview
Avi-on dual technology sensors, which utilize both PIR and ultrasonic detection methods, can offer enhanced performance in areas where a PIR sensor alone is insufficient. For instance, in spaces with partitions that obstruct the line of sight to certain occupants, a PIR sensor alone may inadvertently turn off the lights when the room is still occupied. This sensor is analog and is intended to be used in conjunction with the analog sensor input of the AVI-XFAC-16A-1CH-CL1 Power Packs or AVI-SIM-12-24VDC-EA.
The Avi-on Dual-tech Ceiling Mount Sensor are powered by and send their signal to the External Power Pack (AVI-XFAC-16A-1CH-CL1) or Avi-on Sensor Input Module (AVI-SIM-12-24VDC-EA) with power supply (AVI-PSR20-277-24-150). Sensor is factory preset to allow for quick installation right out of the box in most applications. Lighting configuration should be done through Avi-on App. Manual adjustments can be made physically on the sensor face.
Dual-Tech Sensor Datasheet (PDF)
Sensor Set Up Guide (PDF)
Sensor Placement Guide (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Features
PIR Sensitivity:
50%: sensor range is set to approximately half the widest range. Sensitivity to minor motion is increased within a smaller detection area. 100%: sensor range is set to maximum. Sensitivity to minor motion is decreased.
Power and Connection
The AVI-SEN-DUCM-24 can be powered by the 24VDC Aux port of the AVI-XPP-16A. Up to four (4) sensors may be powered from one XFAC. When used with the AVI-SIM-12-24VDC-EA, a separate 24DC power supply must be used such as the AVI-PSR20-277-24-150.
Trigger Mode:
The sensor has 6 different trigger options that can be applied by adjusting dip switches 2, 3, and 4.
Both: requires motion detection by the PIR and Ultrasonic sensor to trigger an event.
Either: requires motion detection by only one sensor (PIR or Ultrasonic) to trigger an event.
PIR: requires motion detection by the PIR sensor to trigger an event. Output signal from the Ultrasonic sensor is ignored.
Ultrasonic: requires motion detection by the ultrasonic sensor to trigger an event. Output signal from the PIR sensor is ignored.
It is recommended this setting is set to Both.
Time Delay Adjustment
This is set by the factory to the appropriate default. Time delay adjustments and other sensor behaviors are set using the Avi-on platform on the XPP the sensor is connected to.
Ultrasonic Sensitivity Adjustment
Use a small slotted screwdriver to turn the trimpot. Min (-) setting is best for smaller areas and near doorways or heat sources to avoid false triggering. Max (+) setting is best for larger open areas. It is not recommended that this setting be changed from its default.
On/Off
There is a 40-second warm-up period when power is first applied to the sensor. Before making adjustments, make sure office furniture is installed, lighting circuits are turned on, and HVAC systems are turned on. VAV (variable air volume) systems should be set to their highest airflow.
Sensor
PARTS & ORDERING
| Part Number | Name | Description |
|---|---|---|
| AVI-SEN-DUCM-24 | Dual-tech Ceiling Mount Sensor | Dual-tech Non Bluetooth Ceiling Mount Sensor |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

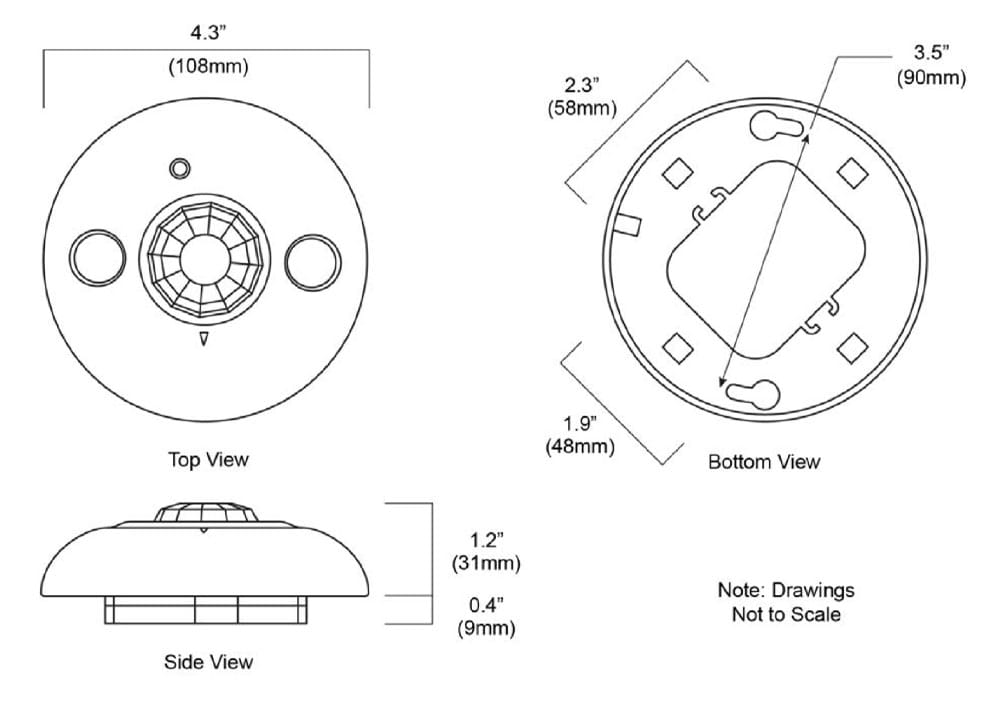

Specifications
- Sensor Type: Dual tech (PIR / Ultrasonic) ceiling mount
- Input Voltage: 24VDC
- Power Consumption: 15.5mA
- AC to DC Power Supply: AVI-PSR20-277-24-150 class 2 power pack
- PIR Sensor Range: 44ft / 1600 ft2 / 360° coverage
- Ultrasonic Sensor Range: 30ft x 30ft / 900 ft2 / 360° coverage
- Time Delay: 5 sec to 30 min
- Photocell Sensitivity: 10-150 fc (107-1615 lux)
- Operating Temperature: -0° to 55°C
- Storage Temperature: -10° to 60°C
- Relative Humidity: 95% non-condensing
- Mounting: Ceiling mount
- Color: White
- Warranty: 5 years
- Certifications: UL/cUL listed power pack
