Avi-on XFAC
Circuit Load Controller

Avi-on XFAC Circuit Load Control

XFAC FEATURES

Avi-on XFAC Zone Control

The Avi-on XFAC is a highly capable wireless zone controller with loads of additional features.  110-277V, 16A Lighting rated relay, high capacity 0-10V dimming, and multiple sensor integration options make this a single component solution for an entire zone based control solution.

Flexible Installation

The XFAC is available in Class I or Class II wiring options. The XFAC is fully networked and integrated with the Avi-on ecosystem and is interoperable with all other Avi-on sensors, wall stations, and fixture controllers.

Sensor Ready

The XFAC is a sensor integration powerhouse with 2 different sensor inputs: Plug any Avi-on Direct Connect sensor for easy sensor integration, or use the general purpose sensor input with 24VDC power and contact input with third party sensors.

Energy Monitoring

The XFAC includes true measured energy consumption readings every 15 minutes (>0.5% accuracy). Use the XFAC to comply with top tier utility rebate programs and corporate energy management initiatives.

UL 924 Rated

The XFAC is rated as an emergency lighting control appliance. Use to control zones or individual fixtures without adding bypass relays. Trigger emergency status for fixtures across an entire building for applications using Uninterruptible Power Supplies (UPS) or based on triggers from Building Control Systems (BCS). Order the -EM version for emergency mode to be pre configured, or enable/disable emergency mode for any XFAC unit with Avi-on Pro.

Color Changing Capable

Available with 2 0-10V outputs to control color changing (CCT) lights.

Avi-on Direct Connect Sensors  XFAC Datasheet (PDF)
Avi-on XPP Circuit-level Load Control

Avi-on XPP Circuit Load Controller  Class 1

Avi-on XPP Circuit Load Controller  Class 2

Avi-on XPP Circuit Load Controller  220V Class 2


Avi-on Direct Connect Sensors  Quick Set-up Guide (PDF)

Commercial Installation Guide  Commercial Installation Guide (PDF)

XFAC
PARTS & ORDERING

Select a part number from the table listed below
Part NumberSupply VoltageChannelsConfigurationRelay
AVI-B-XFAC-16A-1CH-CL1100 - 277 VACSingleClass 116 Amp
AVI-XFAC-16A-1CH-CL2100 - 277 VACSingleClass 216 Amp
AVI-B-XFAC-16A-CCT-CL1100 - 277 VACDual (CCT)Class 116 Amp
AVI-B-XFAC-16A-WC-CL1100 - 277 VACDual (WC)Class 116 Amp
AVI-B-XFAC-16A-CCT-CL2100 - 277 VACDual (CCT)Class 216 Amp
AVI-B-XFAC-16A-WC-CL2100 - 277 VACDual (WC)Class 216 Amp
AVI-XFAC-16A-ENERGYXFAC without Control Capability - Energy Monitoring of Circuit only

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

Specifications

  • Supply Voltage US 100-277 VAC
  • Supply Voltage EU 220-240 VAC
  • Operating Current Consumption (100 VAC / 277 VAC) 20 / 14 81 / 46 mA
  • Operating Current Consumption (230 VAC) 14 46 mA
  • Output Voltage 0-10V_OUT 0.02 10.35 V
  • Storage Temperature -40/-40 +185/+85 °F/°C
  • Ambient Operating Temperature -4/-20 +113/+45 °F/°C
  • Relay Current (Electronic Ballast/LED Driver) – 16 A
  • Amperage for 0-10V lines 325 mA/CH

High Voltage Connection Wires

  • AC Voltage (LINE) BLACK (AC LINE) AC 100-277VAC, #14
  • NEUTRAL WHITE AC neutral/common, #18
  • LINE DRIVER RED Relay controlled AC output (switched line), #14

Low Voltage Connection Wires

  • 0-10V_OUT[1]+ PURPLE User controllable 0-10VDC (dimming), #18
  • 0-10V_OUT[2]+ ORANGE User controllable 0-10VDC (CCT), #18
  • 0-10V_OUT[1&2]- PINK Common dimming negative, #18
  • DC + 24V 62mA* Terminal 24 Volt DC output, #16-#24, Max 62mA
  • GND – Terminal Common ground, #16-#24
  • CC_IN Terminal 24 Volt Sensor input, #16-#24

Case Dimensions
Length 3.58” (91mm), Width 3.58” (91mm), Height 1.57” (40mm)

Protection/Immunity (non-regulatory): AC-input/user input and output connections: ESD Level-4 immunity per IEC/EN 61000-4-2

AC-input: EFT and BUSRTS immunity IEC/EN 61000-4-4, Class3 or better (=<2kV)

AC-input: SURGE immunity IEC/EN 61000-4-5, Class3 or better (=<2kV)

EU Regulatory
Over-voltage: Category III

Signal Indicator: LED ON Represents LOAD OFF

Glow-wire temperatures: 650°C /850°C
PCB Coating Type: Type 2

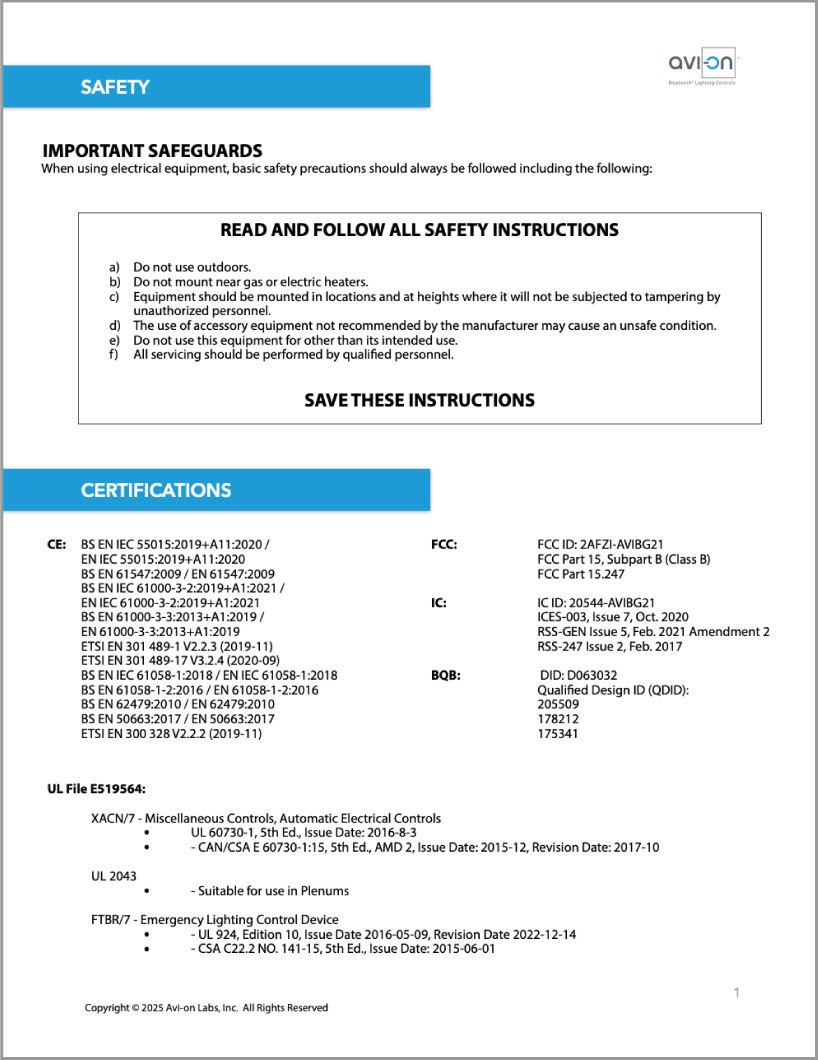

Certifications

  • USA
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247″
  • EU
    BS EN IEC 55015:2019+A11:2020 / EN IEC 55015:2019+A11:2020
    BS EN 61547:2009 / EN 61547:2009
    BS EN IEC 61000-3-2:2019+A1:2021 / EN IEC 61000-3-2:2019+A1:2021
    BS EN 61000-3-3:2013+A2:2021 / EN 61000-3-3:2013+A2:2021
    ETSI EN 301 489-1 V2.2.3 (2019-11)
    ETSI EN 301 489-17 V3.2.4 (2020-09)
    BS EN IEC 61058-1:2018 / EN IEC 61058-1:2018
    BS EN 61058-1-2:2016 / EN 61058-1-2:2016
    BS EN 62479:2010 / EN 62479:2010
    BS EN 50663:2017 / EN 50663:2017
    ETSI EN 300 328 V2.2.2 (2019-11)
  • Canada
    IC ID: 20544-AVIBG21
    ICES-005, Issue 5, Dec. 2018
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB
    DID: D059595
    Qualified Design ID (QDID): 185220
  • UL
    UL 60730-1 ED.5
    UL 2043 ED.4
    ALSO LISTED AS EMERGENCY LIGHTING EQUIPMENT (UL 924)
