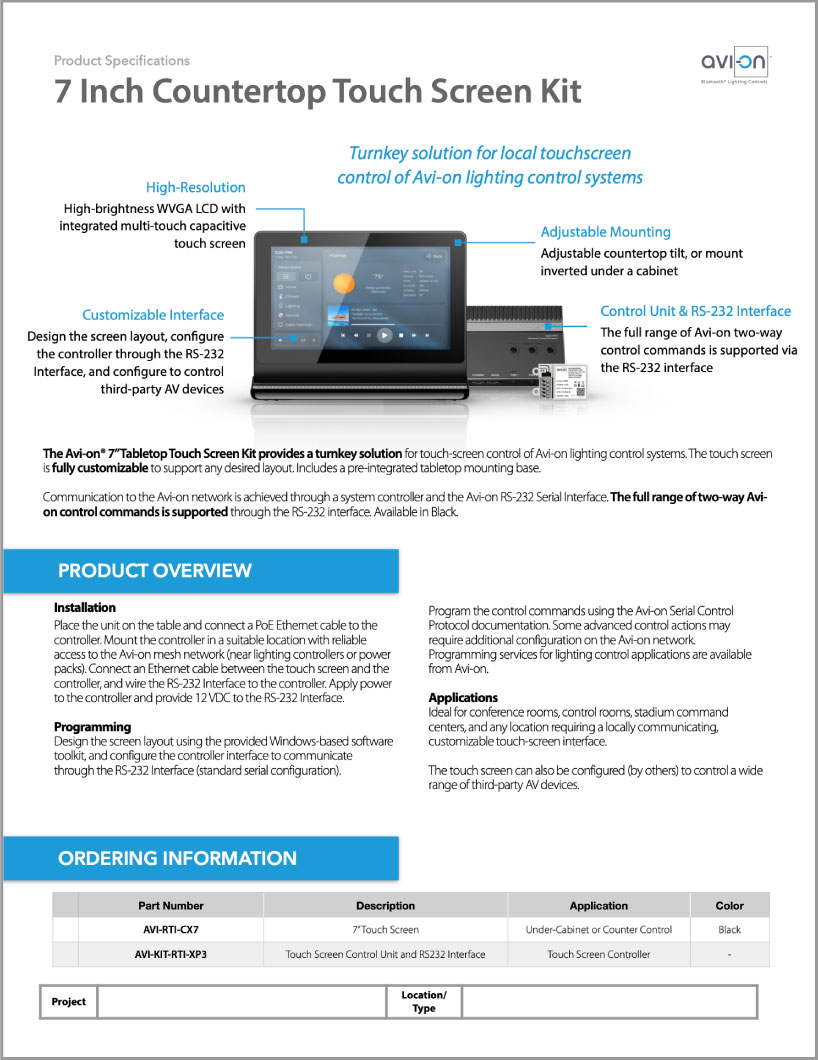

Countertop Touch Screen
7 Inch Kit
The Avi-on® 7” Tabletop Touch Screen Kit provides a turnkey solution for touch-screen control of Avi-on lighting control systems. The touch screen is fully customizable to support any desired layout. Includes a pre-integrated tabletop mounting base.
Communication to the Avi-on network is achieved through a system controller and the Avi-on RS-232 Serial Interface. The full range of two-way Avi-on control commands is supported through the RS-232 interface.
Available in Black.
Touch Screen FEATURES
Touch Screen Details
Installation

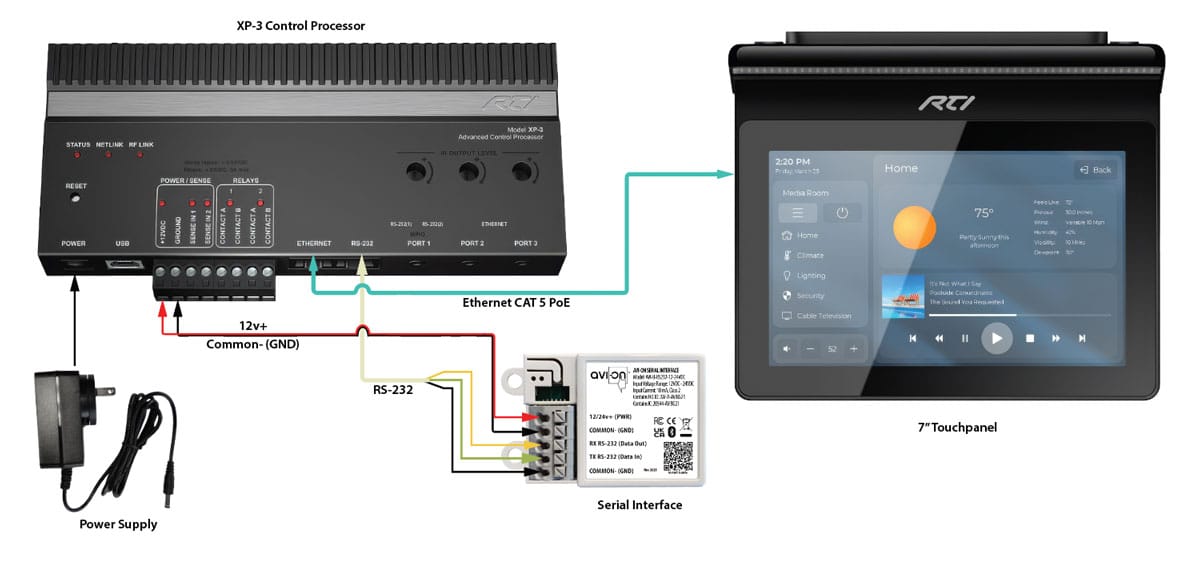

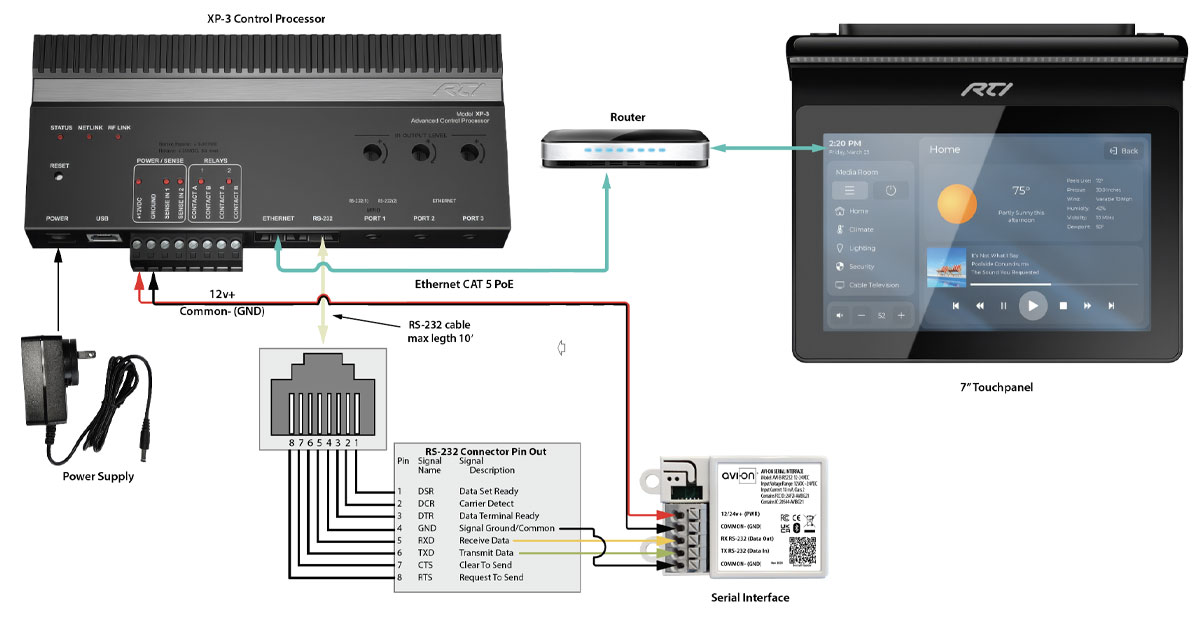

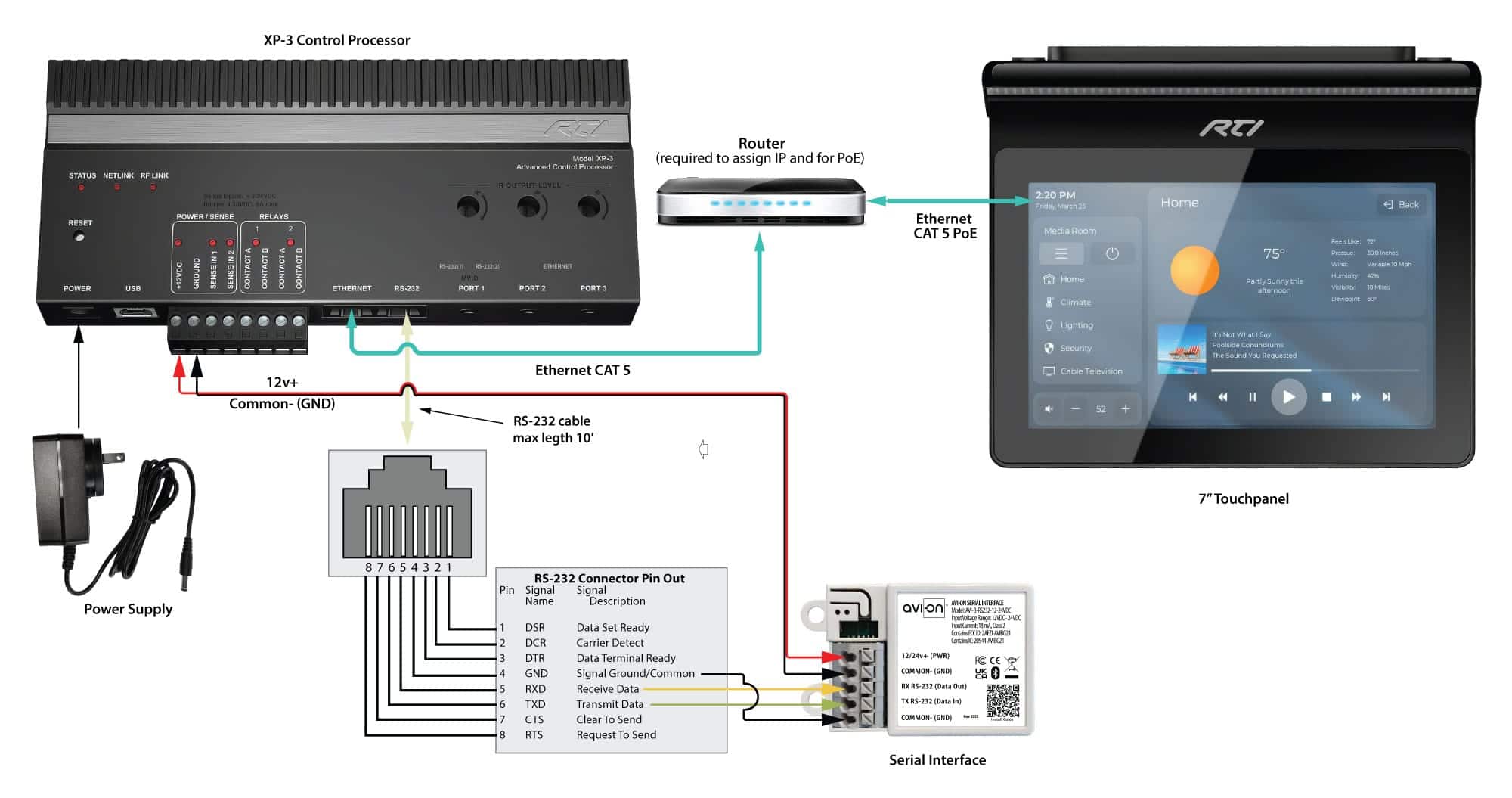

Place the unit on the table and connect a PoE Ethernet cable to the controller. Mount the controller in a suitable location with reliable access to the Avi-on mesh network (near lighting controllers or power packs). Connect an Ethernet cable between the touch screen and the controller, and wire the RS-232 Interface to the controller. Apply power to the controller and provide 12 VDC to the RS-232 Interface.
Programming
Design the screen layout using the provided Windows-based software toolkit, and configure the controller interface to communicate through the RS-232 Interface (standard serial configuration).
Program the control commands using the Avi-on Serial Control Protocol documentation. Some advanced control actions may require additional configuration on the Avi-on network.
Programming services for lighting control applications are available from Avi-on.
Applications
Ideal for conference rooms, control rooms, stadium command centers, and any location requiring a locally communicating, customizable touch-screen interface.
The touch screen can also be configured (by others) to control a wide range of third-party AV devices.
Touch Screen Integration (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Touch Screen
PARTS & ORDERING
| Part Number | Description | Application | Color |
|---|---|---|---|
| AVI-RTI-CX7 | 7” Touch Screen | Under-Cabinet or Counter Control | Black |
| AVI-KIT-RTI-XP3 | Touch Screen Control Unit & RS232 Interface | Touch Screen Controller | - |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Additional
Images
See the full range of included components and optional accessories that streamline installation and optimize performance of the Avi-on 7-Inch Touch Screen Kit.
Serial Interface
AVI-KIT-RTI-XP3
AVI-RTI-CX7
Touch Screen
Specifications
The following specifications highlight the 5-Inch Touch Screen Kit’s enhanced display size, efficient power architecture, and reliable integration with Avi-on lighting control systems.
Touch Screen
Macro Capability: Total number of macros limited only by available memory
Control Processor
Ethernet Port: RJ45, One 10/100Base-T with Power-over-Ethernet (Class 3)
Trigger Sense Inputs: Two, 3–24 VDC, Off/Low voltage condition must not exceed 1 VDC
Dimensions (W × H × D): 7.0″ × 3.0″ × 1.0″ (177 mm × 76 mm × 25 mm)
RS-232 Serial Interface
Warranty: 5 years; 10 years optional
*When communicating through the mesh, range is essentially unlimited (5000ft+)
