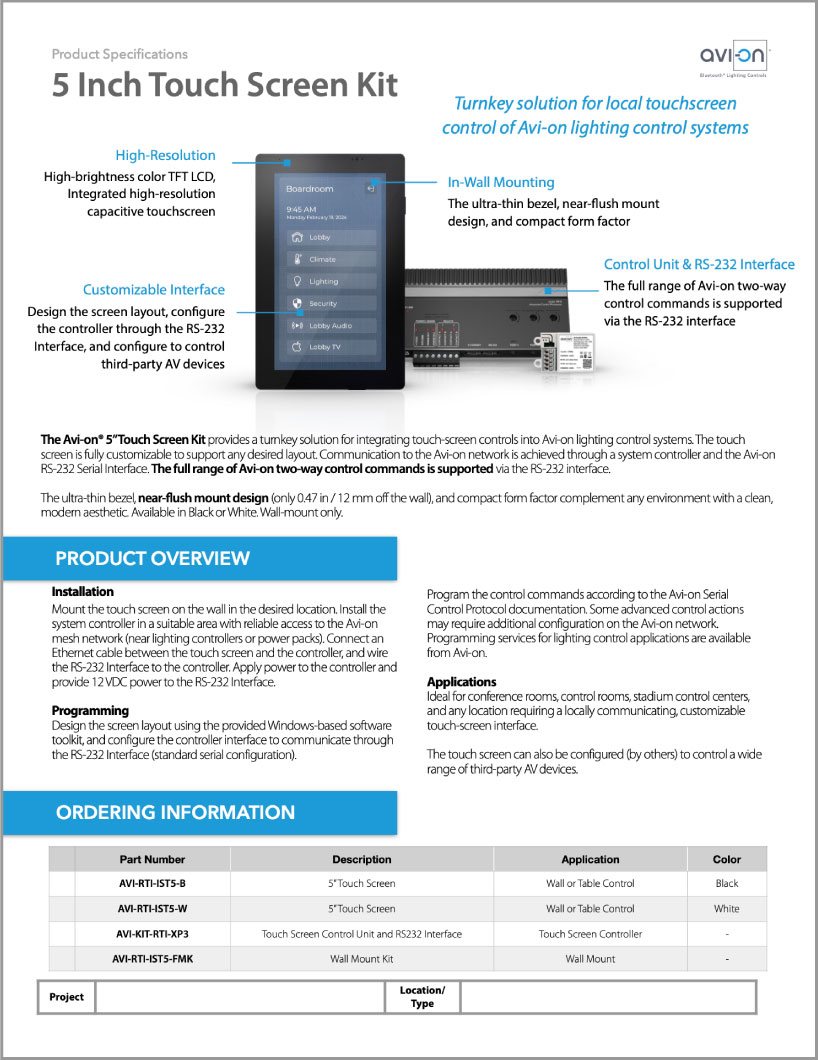

Touch Screen Kit
5 Inch
The Avi-on® 5” Touch Screen Kit provides a turnkey solution for integrating touch-screen controls into Avi-on lighting control systems. The touch screen is fully customizable to support any desired layout. Communication to the Avi-on network is achieved through a system controller and the Avi-on RS-232 Serial Interface. The full range of Avi-on two-way control commands is supported via the RS-232 interface.
The ultra-thin bezel, near-flush mount design (only 0.47 in / 12 mm off the wall), and compact form factor complement any environment with a clean, modern aesthetic.
Available in Black or White. Wall-mount only.
Touch Screen FEATURES
Touch Screen Details
Installation

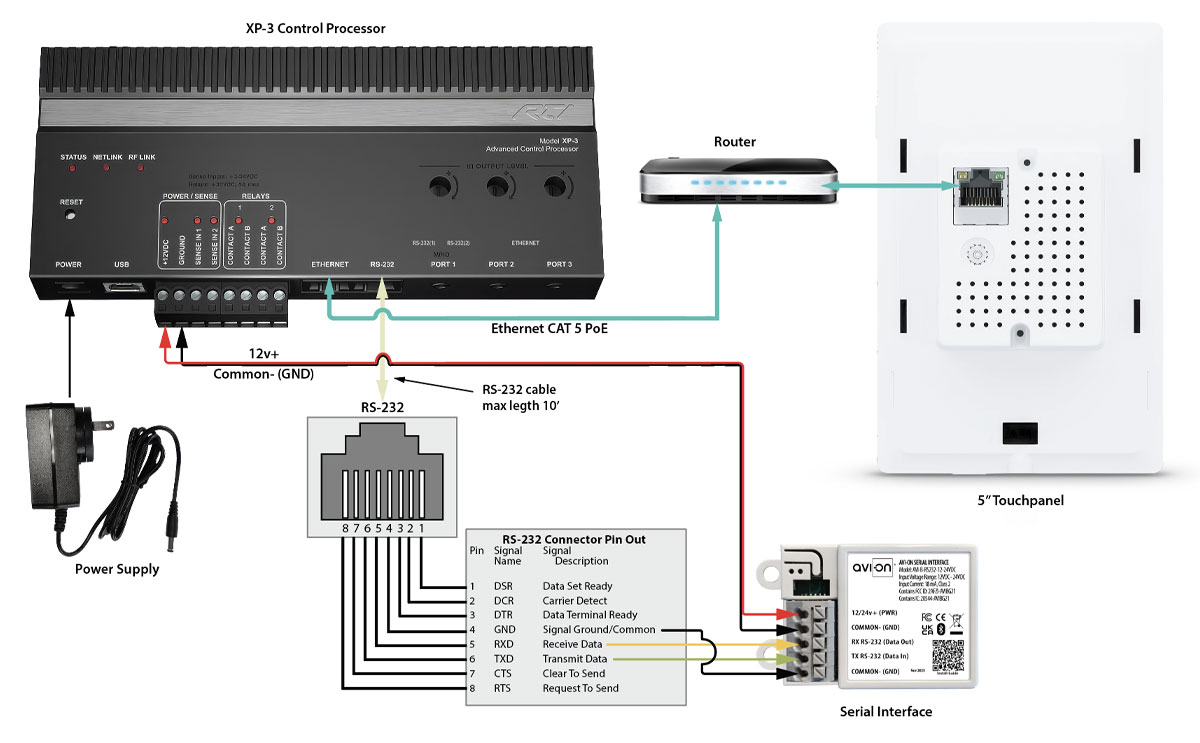

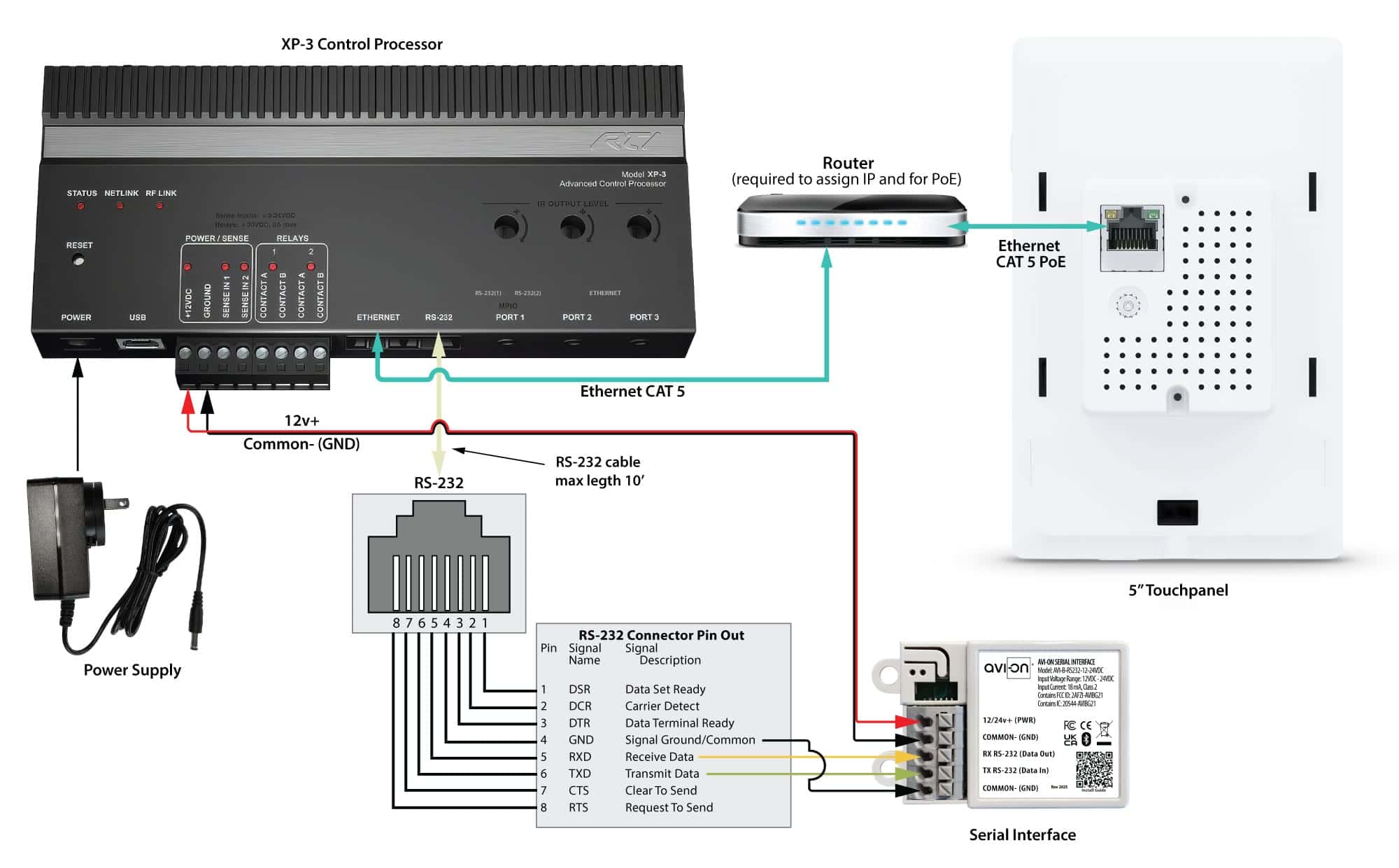

Mount the touch screen on the wall in the desired location. Install the system controller in a suitable area with reliable access to the Avi-on mesh network (near lighting controllers or power packs). Connect an Ethernet cable between the touch screen and the controller, and wire the RS-232 Interface to the controller. Apply power to the controller and provide 12 VDC power to the RS-232 Interface.
Programming
Design the screen layout using the provided Windows-based software toolkit, and configure the controller interface to communicate through the RS-232 Interface (standard serial configuration).
Program the control commands according to the Avi-on Serial Control Protocol documentation. Some advanced control actions may require additional configuration on the Avi-on network.
Programming services for lighting control applications are available from Avi-on.
Applications
Ideal for conference rooms, control rooms, stadium control centers, and any location requiring a locally communicating, customizable touch-screen interface.
The touch screen can also be configured (by others) to control a wide range of third-party AV devices.
Touch Screen Integration (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Touch Screen
PARTS & ORDERING
| Part Number | Description | Application | Color |
|---|---|---|---|
| AVI-RTI-IST5-B | 5” Touch Screen | Wall or Table Control | Black |
| AVI-RTI-IST5-W | 5” Touch Screen | Wall or Table Control | White |
| AVI-KIT-RTI-XP3 | Touch Screen Control Unit & RS232 Interface | Touch Screen Controller | - |
| AVI-RTI-IST5-FMK | Wall Mount Kit | Wall Mount | - |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Additional
Images
See the full range of included components and optional accessories that streamline installation and optimize performance of the Avi-on 5-Inch Touch Screen Kit.
Serial Interface
AVI-KIT-RTI-XP3
AVI-RTI-IST5-W
AVI-RTI-IST5-FMK
Touch Screen
Specifications
The following specifications highlight the 5-Inch Touch Screen Kit’s enhanced display size, efficient power architecture, and reliable integration with Avi-on lighting control systems.
Touch Screen
Microphone: Built-in digital microphone array with mute button; hardware-based echo cancellation
Macro Capability: Total number of macros limited only by available memory
Wall Cut-Out Dimension: 2.15″ × 3.6” (W × H)
In-Wall (Wall Box) Depth: 1.34″ (34.0 mm); allow additional space for the RJ-45 connector
Control Processor
RS-232 Serial Interface
Warranty: 5 years; 10 years optional
*When communicating through the mesh, range is essentially unlimited (5000ft+)
Wall Mount
To be installed in ½” drywall.
