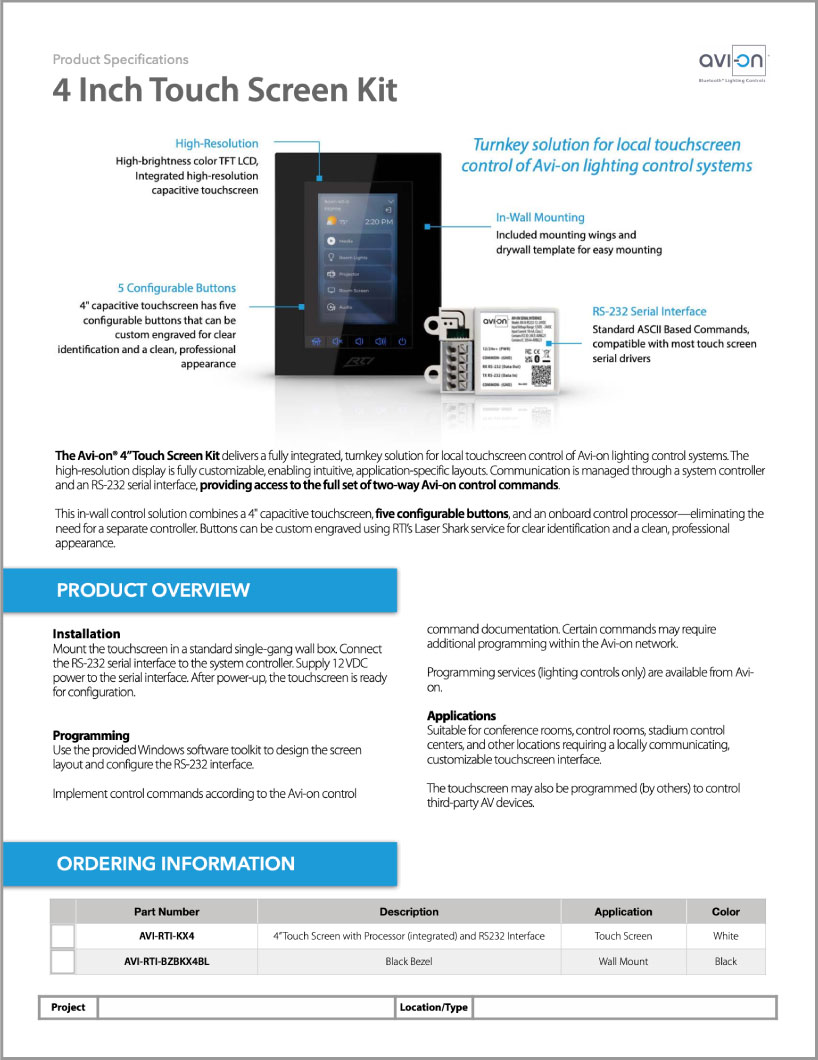

Touch Screen Kit
4 Inch
The Avi-on® 4” Touch Screen Kit delivers a fully integrated, turnkey solution for local touchscreen control of Avi-on lighting control systems. The high-resolution display is fully customizable, enabling intuitive, application-specific layouts. Communication is managed through a system controller and an RS-232 serial interface, providing access to the full set of two-way Avi-on control commands.
This in-wall control solution combines a 4″ capacitive touchscreen, five configurable buttons, and an onboard control processor—eliminating the need for a separate controller. Buttons can be custom engraved using RTI’s Laser Shark service for clear identification and a clean, professional appearance.
Touch Screen FEATURES
Touch Screen Details
Installation

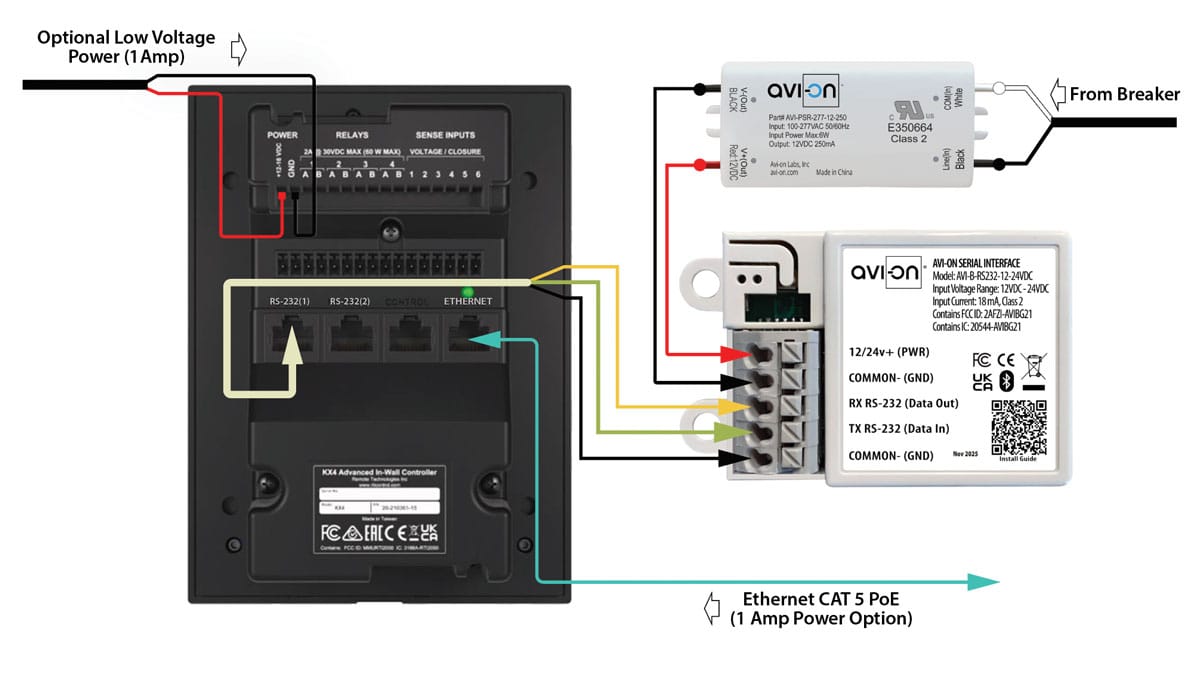

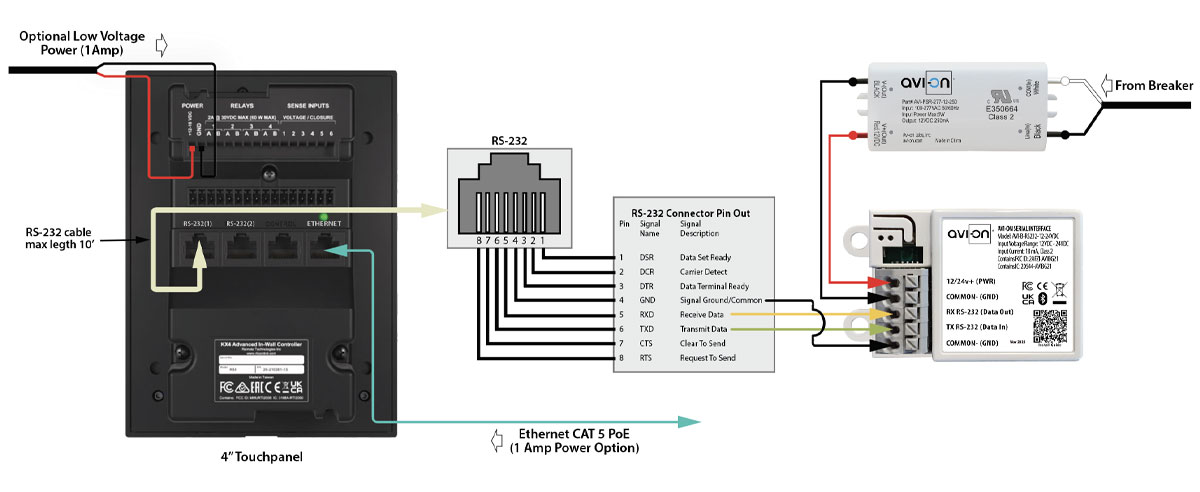

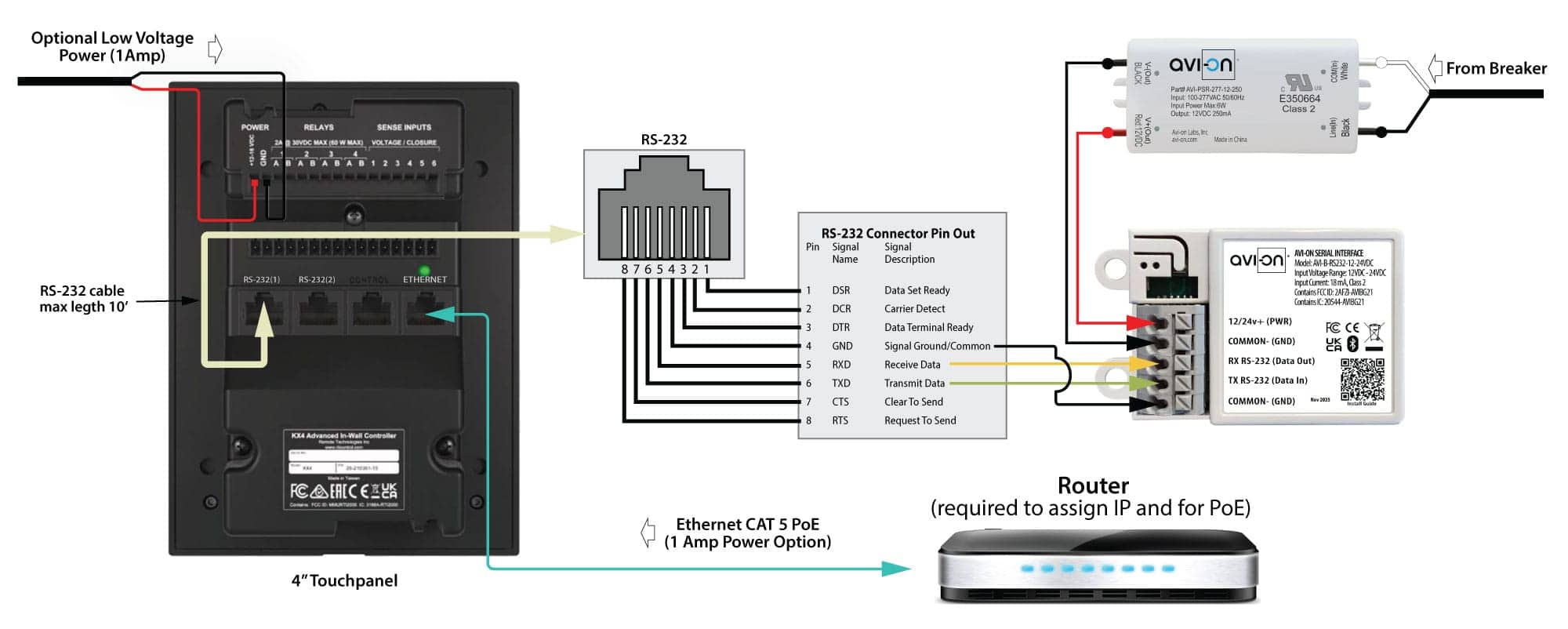

Mount the touchscreen in a standard single-gang wall box. Connect the RS-232 serial interface to the system controller. Supply 12 VDC power to the serial interface. After power-up, the touchscreen is ready for configuration.
Programming
Use the provided Windows software toolkit to design the screen layout and configure the RS-232 interface.
Implement control commands according to the Avi-on control command documentation. Certain commands may require additional programming within the Avi-on network.
Programming services (lighting controls only) are available from Avi-on.
Applications
Suitable for conference rooms, control rooms, stadium control centers, and other locations requiring a locally communicating, customizable touchscreen interface.
The touchscreen may also be programmed (by others) to control third-party AV devices.
Touch Screen Integration (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Touch Screen
PARTS & ORDERING
| Part Number | Description | Application | Color |
|---|---|---|---|
| AVI-RTI-KX4 | 4” Touch Screen with Processor (integrated) and RS232 Interface | Touch Screen | Black |
| AVI-RTI-BZBKX4BL | Black Bezel | Wall Mount | Black |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Additional
Images
See the full range of included components and optional accessories that streamline installation and optimize performance of the Avi-on 7-Inch Touch Screen Kit.
AVI-RTI-KX4
AVI-RTI-BZBKX4BL
Touch Screen
Specifications
The following specifications highlight the 4-Inch Touch Screen Kit’s compact form factor, efficient power design, and seamless integration with Avi-on systems.
Touch Screen
Power Management: Adjustable backlight and proximity sensor
Touchscreen Display: High-brightness color TFT LCD, WVGA (480 × 800 pixels), 16.7M colors, Integrated high-resolution capacitive touchscreen
PoE Camera: Color CMOS, 2 MP, 15–30 fps at 1920 × 1080
Microphone: Silicon MEMS
Macro Capability: Total number of macros limited only by available memory
Operating Temperature: +32°F to +122°F (0°C to +50°C)
Wall Cut-Out Dimension: 2.942 in (74.7 mm) × 5.192 in (131.8 mm)
NOTE: Additional room may be required depending on connections.
RS-232 Serial Interface
*When communicating through the mesh, range is essentially unlimited (5000ft+)
