Avi-on
Programming Tool
The Avi-on Programming Tool (APT) is a plug-and-play Bluetooth® antenna that delivers a stable, continuous connection for the Avi-on Mobile Commissioning App during project startup and commissioning.
Whether working near or far from devices on site, users can maintain reliable communication without interruption. By providing a consistent Bluetooth interface between the app and field devices, the APT helps ensure dependable performance across a variety of mobile phones. The result is a more streamlined commissioning experience with reduced downtime and improved productivity.
Programming Tool FEATURES

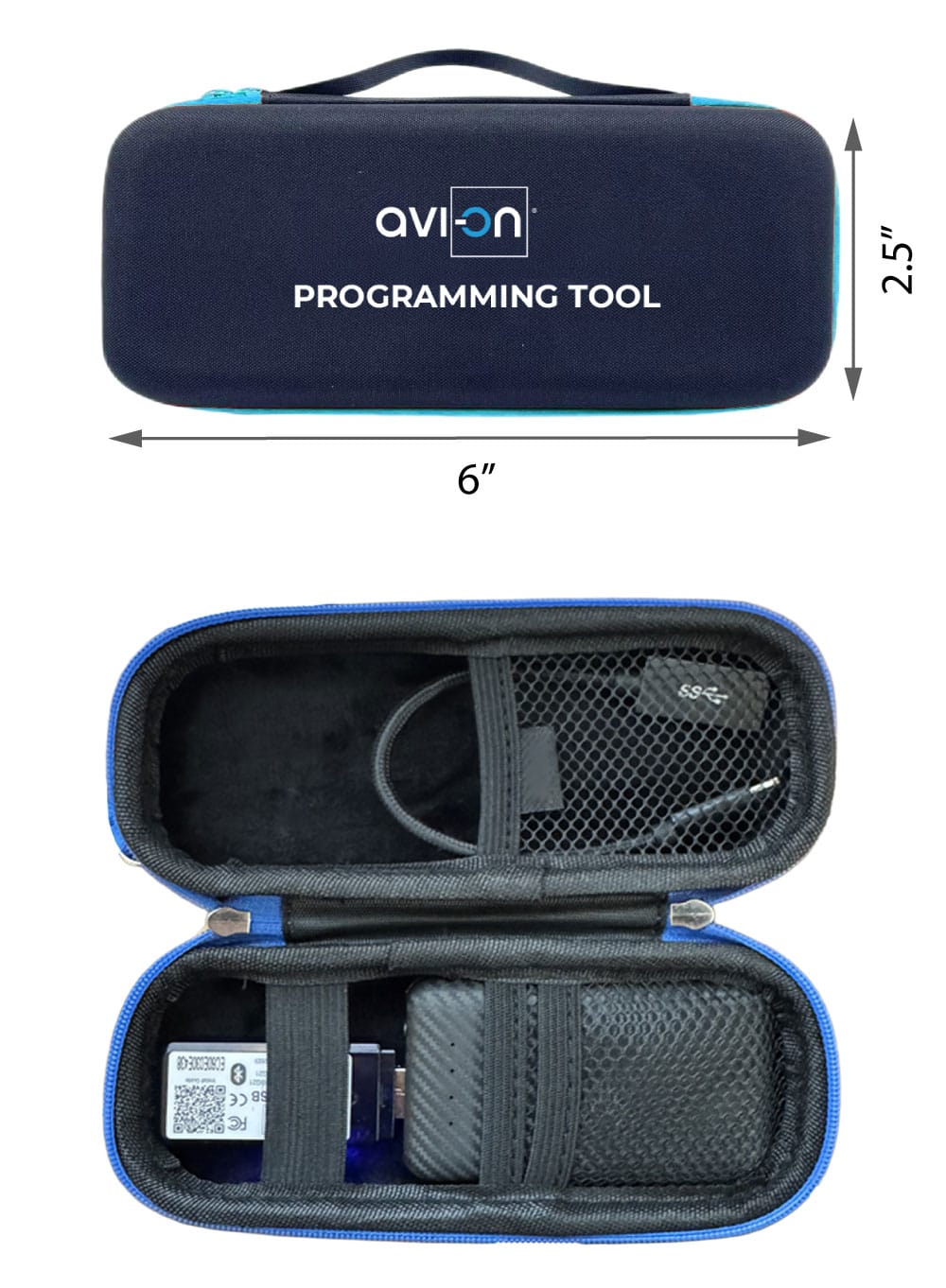

Programming Tool Details
Applications
- Project startup and initial device commissioning
- Large-scale retrofits and new construction where consistent Bluetooth performance is critical
- Ongoing facility management and post-commissioning adjustments by facilities staff
- Any environment where cell phone Bluetooth antenna variation affects commissioning reliability
- Solution validated on projects up to 275 devices.
Setup & Operation

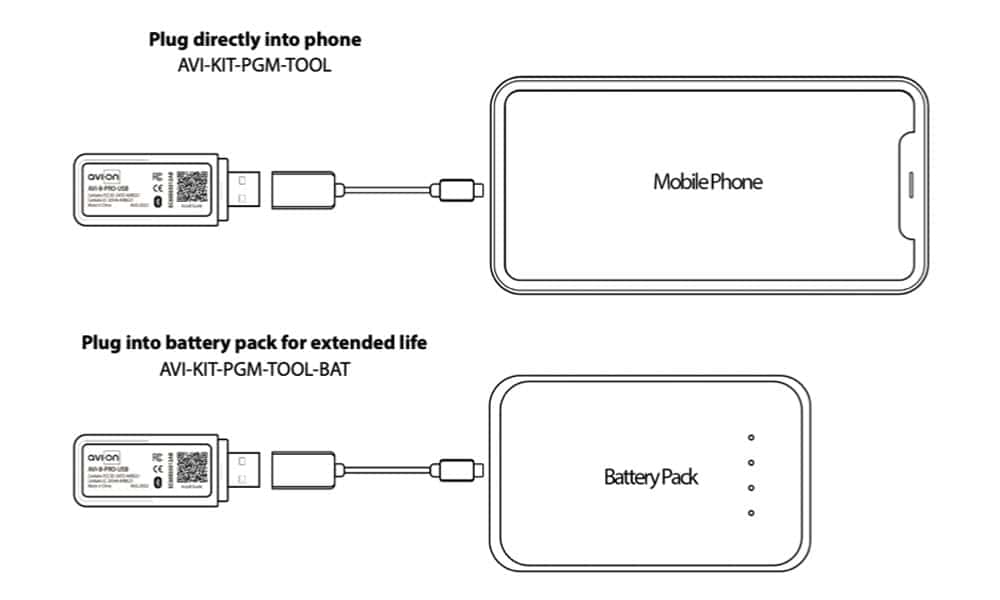

- Power the APT
- Basic APT: Connect the Avi-on Antenna Dongle to your phone using the provided USB-C to USB-A cable.
- APT with Battery Pack: Connect the Dongle to the battery pack using the cable. Keep the APT within 10 feet of your phone at all times.
- Enable the APT in the App
- Open the Avi-on Mobile Commissioning App and log in.
- Enable “Scan for Dongle Connection” (also accessible later in App Settings).
- Confirm Bluetooth Connection
- Verify the Dongle icon appears in the upper-right corner of the App.
- Commission
- Keep the APT within 10 feet of your phone throughout the commissioning process.
- Leave with the Facilities Manager
- The APT is designed for ongoing use by facilities staff to adjust settings and maintain Avi-on lighting controls after project handoff.
Touch Screen Integration (PDF)

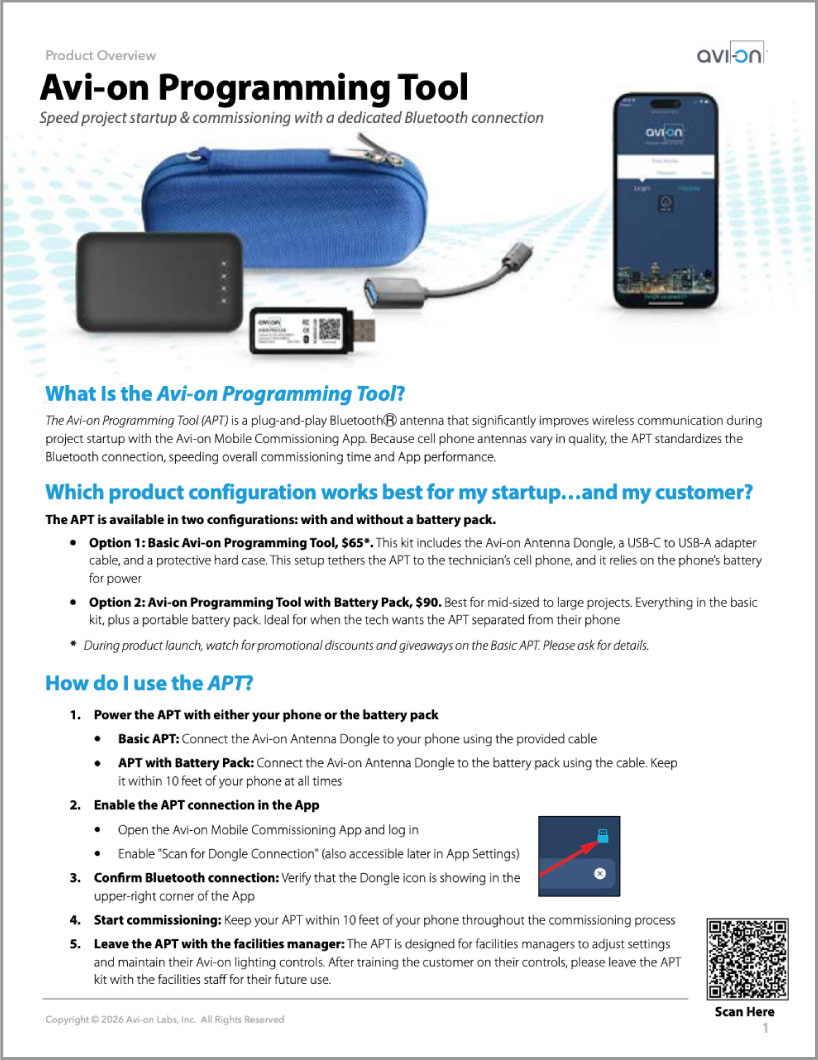

Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Ideal for conference rooms, control rooms, stadium command centers, and any location requiring a locally communicating, customizable touch-screen interface.
The touch screen can also be configured (by others) to control a wide range of third-party AV devices.

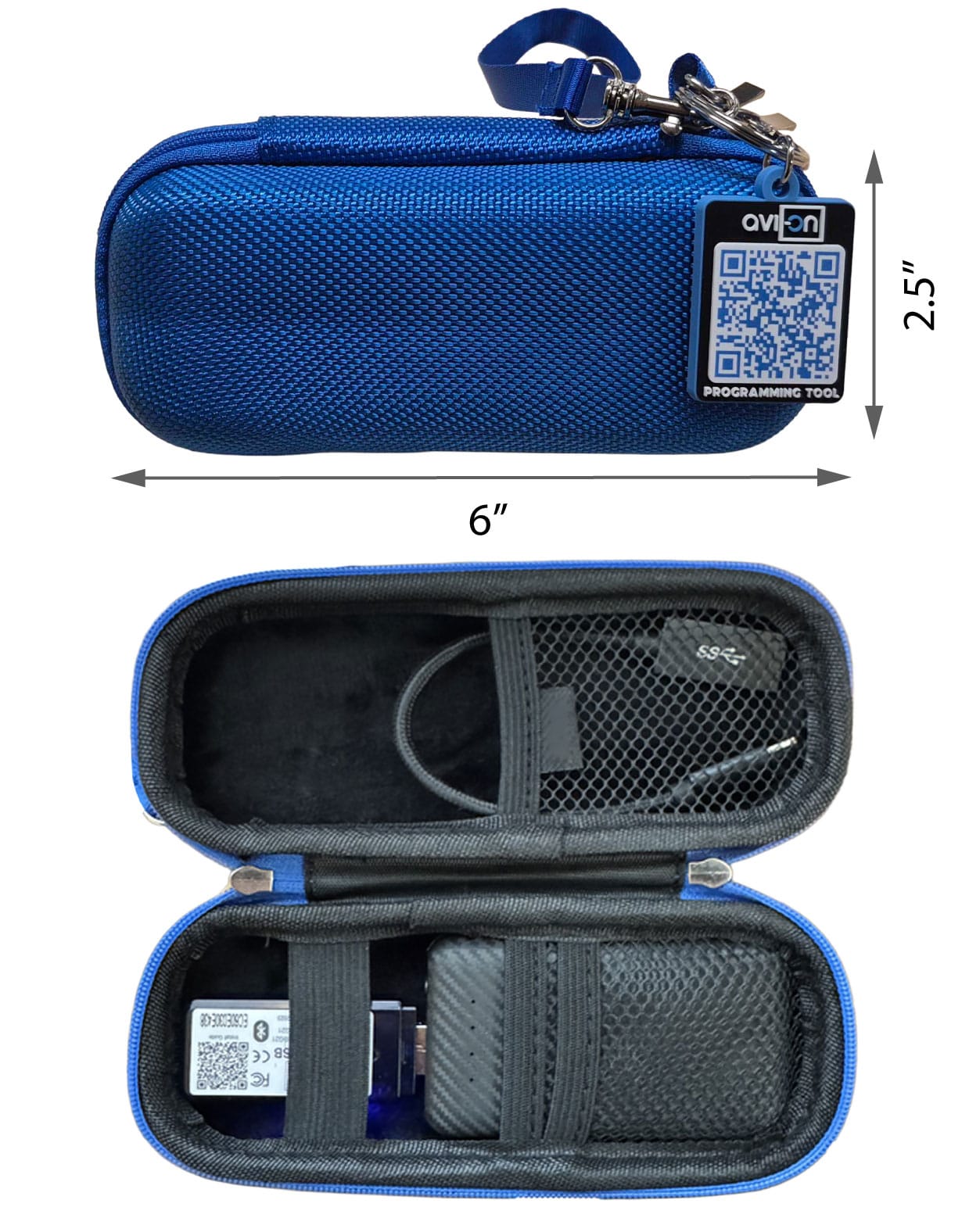

Programming Tool
PARTS & ORDERING
| Part Number | Name | Description |
|---|---|---|
| AVI-KIT-PGM-TOOL | Avi-on Programming Tool Kit | Handheld tool for Avi-on device programming and commissioning |
| AVI-KIT-PGM-TOOL-BAT | Avi-on Programming Tool Kit with Battery Pack | Handheld programming tool with extended battery pack for all-day field use. |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Programming Tools
Specifications
The following specifications highlight the 10-Inch Touch Screen Kit’s expansive display, advanced performance characteristics, and seamless integration across Avi-on control environments.
Avi-on Antenna Dongle (AVI-B-PRO-USB)
Point-to-Point Range: 80 ft with obstructions; 350 ft unobstructed*
Security: AES 128-bit (device-to-device); AES 256-bit (device-to-cloud)
Operating Temperature: -10°C to +70°C**
Storage Temperature: -10°C to +70°C***
Humidity Rating: 95% non-condensing
Warranty: 5 years; 10 years optional
FCC ID: 2AFZI-AVIBG21
IC ID: 20544-AVIBG21
USB-IF Verification: TID: 40001463
* When communicating through the mesh, range is essentially unlimited (5,000 ft+).
** Operating the dongle at or above specified limits may result in damage to components or product.
*** For temperatures below freezing or at dew point, the device should be sealed in a watertight container to prevent frost buildup.
Portable Battery Pack (AVI-KIT-PGM-TOOL-BAT Only)
Model: Anker 321 Power Bank (PowerCore 5K) — Model A1112
Capacity: 5,200 mAh
Dimensions (L×H×W): 3.78″ × 1.76″ × 0.91″ (96.0 × 44.7 × 23.1 mm)
Weight: 118 g (4.16 oz)
USB-A Output: 5V ⏴ 2.4A (12W)
USB-C Output: 5V ⏴ 2.4A (12W)
USB-C Input: 5V ⏴ 2.4A (12W)
Total Max Output: 12W
Charging Technology: PowerIQ with Trickle Charge Mode for low-powered devices
Safety: MultiProtect: surge protection, short circuit prevention, temperature control, overcurrent protection
Included Cable: 2 ft (0.6 m) USB-A to USB-C
