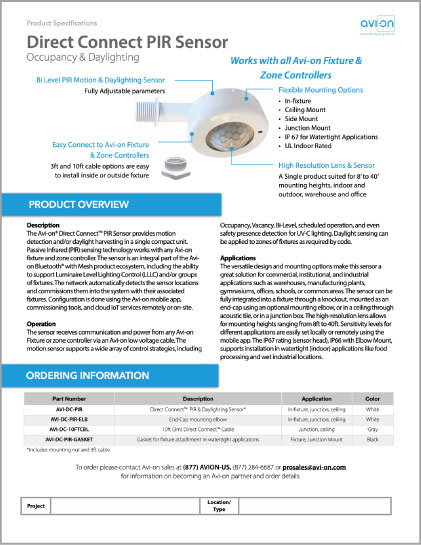

Direct connect PIR Sensor
The Avi-on Direct Connect PIR sensor provides motion detection and/or daylight harvesting in a single compact unit. Passive Infrared (PIR) sensing technology works with any Avi-on load controller. The sensor is an integral part of the Avi-on™ Bluetooth with Mesh product ecosystem including the ability support Luminaire Level Lighting Control (LLLC) and/or groups of fixtures. The network auto detects the sensor locations and commissions into the system with its associated fixture. Configuration is done using the Avi-on mobile app, commissioning tools, and cloud IoT Services remotely or on-site.
The sensor receives communication and power from any Avi-on load controller via a Avi-on standard low voltage cable. The motion sensor supports a wide array of control strategies including Occupancy, Vacancy, Bi-Level, scheduled operation, even safety presence detection for
UV-C lighting. Daylight sensing can apply to zones of fixtures as required by code.
The versatile design and mounting options make this sensor a great solution for commercial, institutional and industrial applications such as warehouses, manufacturing plants, gymnasiums, offices, schools or common areas. The sensor can be be fully integrated into a fixture through a knockout, mounted as an end-cap using an optional mounting elbow, or in a ceiling through acoustic tile or in a junction box. The high resolution lens allows for mounting heights ranging from 8’ to 40’.
The sealed design with an IP66 rating make this sensor well suited for wet and outdoor locations for luminaries like area pole lights, floods, canopies, garage or open area fixtures.
PARTS & ORDERING
|AVI-DC-PIR||Direct Connect™ PIR & Daylighting Sensor||In-fixture, Indoor/Outdoor||White|
|AVI-DC-ELB||End-Cap mounting bracket||In-fixture, Indoor/Outdoor||White|
|AVI-DC-10FTCBL||10ft (3m) Direct Connect™ Cable||In-fixture, Indoor/Outdoor||Gray|
To order please contact Avi-on sales at (877) AVION-US or firstname.lastname@example.org
for information on becoming an Avi-on partner and order details.
The Avi-on family of products consists of load controllers, sensors, wall stations and connectivity products that work together in one big happy family. Load controllers manage dimming, schedules, scenes, groups/zones and more while the sensors are able to detect motion with all new state-of-the-art features. These products work seamlessly with the Av-ion cloud to provide a robust wireless ecosystem.
